MIKROTIK
(hAP ac lite Tower) 5 Puertos Fast Ethernet WiFi Doble Banda 802.11ac Base tipo Torre
(hAP ac lite Tower) 5 Puertos Fast Ethernet WiFi Doble Banda 802.11ac Base tipo Torre
SKU:RB952UI-5AC2ND-TC
Precio habitual
$ 1,903.21 MXN
Precio habitual
Precio de oferta
$ 1,903.21 MXN
Precio unitario
por
Impuesto incluido.
Agotado
No se pudo cargar la disponibilidad de retiro

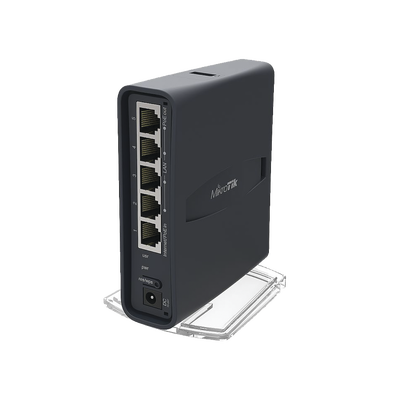

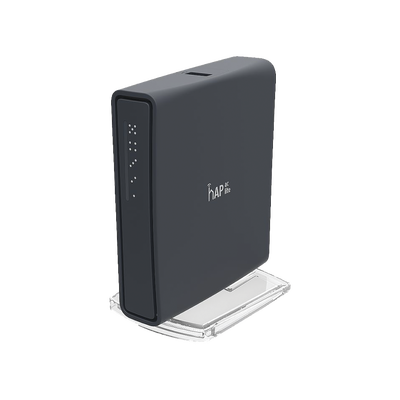

hAP ac lite Torre
El hAP ac lite es un punto de acceso dual concurrente, que proporciona cobertura Wifi para frecuencias de 2,4 GHz y 5 GHz al mismo tiempo.
La unidad está equipada con una CPU de 650 MHz, 64 MB RAM, cinco puertos 10/100Mbps Ethernet (salida PoE en el puerto #5), de doble cadena MIMO 802.11b/g/n inalámbrica de 2.4 GHz, de cadena sencilla SISO 802.11ac 5 GHz inalámbrico, puerto USB para 3G / módem 4G y una licencia RouterOS L4.

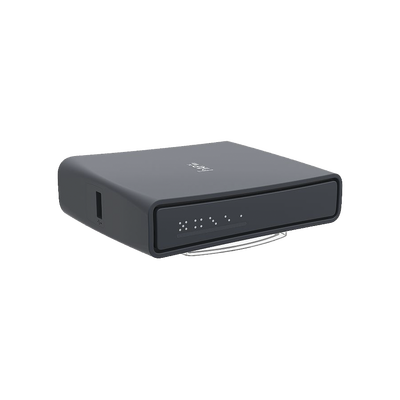

La nueva caja del diseño universal permite que la unidad sea colocada de forma horizontal (escritorio) o vertical (caso de la torre). Muro anclado se proporciona kit de montaje.
*1 año de garantía.
Características principales de RouterOS
| Details | |
|---|---|
| Product code | RB952Ui-5ac2nD-TC |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 5 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA-9887 |
| Secondary wireless standards | 802.11b/g/n |
| Secondary wireless chip model | QCA9531 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE out | Yes |
| Supported input voltage | 10 V - 30 V |
| PoE in | Yes |
| Dimensions | 34 x 119 x 98mm |
| Operating System | RouterOS |
| License level | 4 |
| Antenna gain | 2 |
| CPU | QCA9531 |
| Max Power consumption | 8W |
| USB slot type | USB type A |
| USB Power Reset | Yes |
| Number of chains | 1 |
| Storage type | FLASH |
| Storage size | 16 MB |
Wireless specifications
| 5 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 23 | -93 | 200 |
| 54MBit/s | 20 | -75 | 100 |
| MCS0 | 23 | -93 | 200 |
| MCS7 | 19 | -71 | 79 |
| MCS9 | 16 | -63 | 40 |
| 2.4 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 1MBit/s | 22 | -96 | 158 |
| 11MBit/s | 22 | -89 | 158 |
| 6MBit/s | 20 | -93 | 100 |
| 54MBit/s | 18 | -74 | 63 |
| MCS0 | 20 | -93 | 100 |
| MCS7 | 16 | -71 | 40 |
Included parts
Ethernet test results
| RB952Ui-5ac2nD-TC | QCA9531 (650Mhz) 100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 217.0 | 111.1 |
| Bridging | 25 bridge filter rules | 40.6 | 493.0 | 70.1 | 287.1 | 70.9 | 36.3 |
| Routing | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 200.8 | 102.8 |
| Routing | 25 simple queues | 40.6 | 493.0 | 79.6 | 326.0 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 40.6 | 493.0 | 42.2 | 172.8 | 43.2 | 22.1 |
