MIKROTIK

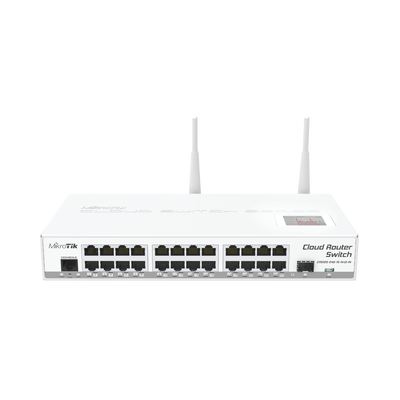

Cloud Router Switch CRS125-24G-1S-2HnD-IN 24 Puertos Gigabit Ethernet 1 Puerto SFP 802.11b/g/n Para escritorio

Name: Cloud Router Switch CRS125-24G-1S-2HnD-IN 24 Puertos Gigabit Ethernet 1 Puerto SFP 802.11b/g/n Para escritorio
Brand: MIKROTIK
SKU: CRS125-24G-1S-2HND-IN
Price: 7759.22 MXN
Availability: OutOfStock

SKU:CRS125-24G-1S-2HND-IN

$ 7,759.22 MXN

Oferta Agotado

Impuesto incluido.

Variantes de producto

Cantidad

Agotado

Cloud Router Switch es nuestra nueva serie Smart Switch. Combina las mejores características de un enrutador completamente funcional y un swicth de Capa 3, que funciona con el familiar RouterOS. Todas las opciones de configuración específicas de Switch están disponibles en un menú especial de Switch, pero si lo desea, los puertos pueden eliminarse de la configuración del switch y utilizarse para el enrutamiento.
Además, este dispositivo tiene un punto de acceso inalámbrico incorporado de 2.4GHz, esto significa que puede tener un AP, un enrutador con cualquier cantidad de puertos y un conmutador inteligente de velocidad de cable completo, todo en un solo dispositivo, ideal para medianas y pequeñas empresas y oficinas. Tiene 24 puertos Gigabit, una jaula SFP, un puerto microUSB y un Wireless AP integrado.

Enrutador de puerta de enlace SOHO perfecto, interruptor, AP 11n todo en una caja
• Conexión de puerta de enlace Ethernet, Fiber o 4G (con módem USB opcional) a Internet
• RouterOS gateway / firewall / VPN con refrigeración pasiva
• hasta veinticinco puertos de switch gigabit (1xSFP y 24xRJ45)
• alta potencia 2.4GHz 11n AP inalámbrico

Specifications

Details

Product code CRS125-24G-1S-2HnD-IN

Architecture MIPSBE

CPU AR9344

CPU core count 1

CPU nominal frequency 600 MHz

Dimensions 285x145x45mm (Para Escritorio)

License level 5

Operating System RouterOS

Size of RAM 128 MB

Storage size 128 MB

Storage type NAND

Tested ambient temperature -35C to +65C

Powering

Details

Max Power consumption 19W

PoE in Passive PoE

PoE in input Voltage 8-28 V

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 8-28 V

Wireless

Details

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 4

Wireless 2.4 GHz chip model AR9344

Ethernet

Details

10/100/1000 Ethernet ports 24

Fiber

Details

SFP DDMI Yes

SFP ports 1

Peripherals

Details

Number of USB ports 1

Serial port RJ45

USB Power Reset Yes

USB slot type microUSB type AB

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 29 -97

11MBit/s 28 -90

6MBit/s 30 -96

54MBit/s 25 -76

MCS0 30 -96

MCS7 23 -73

Switching results

CRS125-24G-1S-2HnD-IN

Mode Configuration 64 byte 512 byte 1518 byte

kpps Mbps kpps Mbps kpps Mbps

Switching Non blocking Layer 2 throughput 37,202.4 19,047.6 5,874.1 24,060.2 2,031.9 24,674.9

Switching Non blocking Layer 2 capacity 37,202.4 38,095.2 5,874.1 48,120.3 2,031.9 49,349.8

Switching Non blocking Layer 1 throughput 37,202.4 25,000.0 5,874.1 25,000.0 2,031.9 25,000.0

Switching Non blocking Layer 1 capacity 37,202.4 50,000.0 5,874.1 50,000.0 2,031.9 50,000.0

Ethernet test results

CRS125-24G-1S-2HnD-IN AR9344 1G all port test

Mode Configuration 1518 byte 512 byte 64 byte

kpps Mbps kpps Mbps kpps Mbps

Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0

Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9

Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2

Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6

Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)

Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes

Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out

Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Included parts

Included parts

24V 1.2A power adapter

USB OTG cable

*1 año de garantía.
